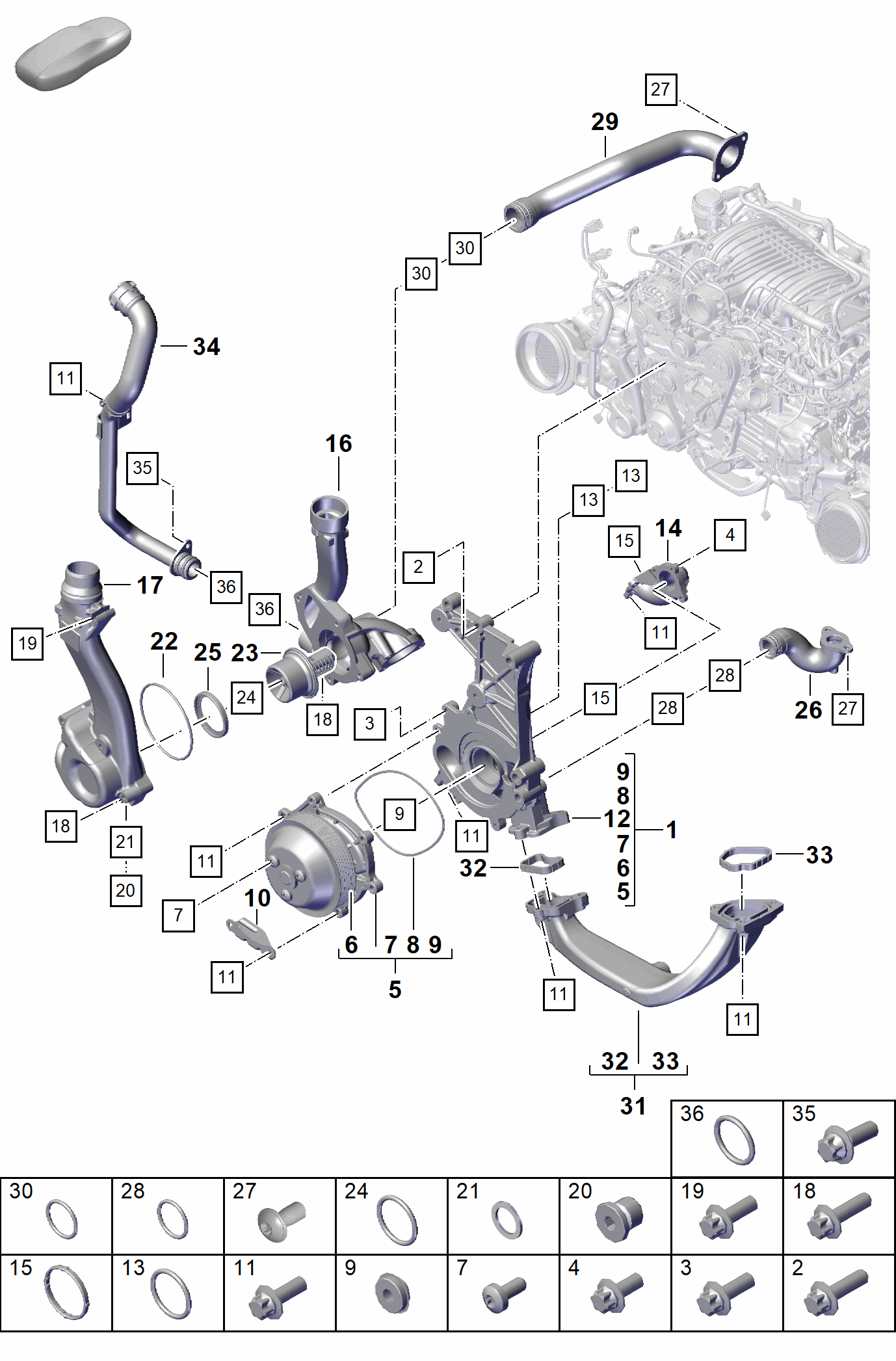

| 1 | 0PB 121 010 C | 0PB121010C - Pompe a liq. refroidissement
(complet) | | 1 | |
| 2 | PAF 008 150 | PAF008150 - Vis ronde a six pans male | M8X50 | 2 | |
| 3 | PAF 008 146 | PAF008146 - Vis ronde a six pans male | M8X25 | 1 | |
| 4 | PAF 008 126 | PAF008126 - Vis ronde a six pans male | M6X20 | 3 | |
| 5 | 0PB 121 035 A | 0PB121035A - Corps de pompe a refrigerant
Inclus
poulie | | 1 | |
| 6 | 0PB 121 031 | 0PB121031 - poulie | | 1 | |
| 7 | WHT 001 702 | WHT001702 - Vis Torx | M8X16 | 3 | |
| 8 | 0PB 121 091 A | 0PB121091A - joint | | 1 | |
| 9 | 0PB 121 017 | 0PB121017 - joint | | 1 | |
| 10 | 0PB 121 079 | 0PB121079 - Support | | 1 | |
| 11 | PAF 008 127 | PAF008127 - Vis ronde a six pans male | M6X25 | 14 | |
| 12 | | Corps de pompe a refrigerant
*pieces detail pas livrables*
utiliser la position: |
0PB121010C | 1 | |
| 13 | 9A7 008 274 00 | 9A700827400 - Joint torique | 34.00X3.00 | 2 | |
| 14 | 0PB 121 076 | 0PB121076 - Tuyau d'eau | | 1 | |
| 15 | 0PB 121 437 | 0PB121437 - joint | | 2 | |
| 16 | 9GT 121 716 | 9GT121716 - boitier de thermostat | | 1 | |
| 17 | 9GT 121 312 | 9GT121312 - Carter circulation d'eau | | 1 | |
| 18 | PAF 008 685 00 | PAF00868500 - Vis ronde a six pans male | M6X50 | 5 | |
| 19 | 9A7 008 129 00 | 9A700812900 - Vis ronde a six pans male | M6X35 | 1 | |
| 20 | PAF 008 321 | PAF008321 - Vis d'obturation | M14X1,5X15 | 1 | |
| 21 | PAF 013 814 | PAF013814 - bague-joint
bague-joint | | 1 | |
| 22 | PAF 009 454 | PAF009454 - Joint torique | 92.00X3.00 | 1 | |
| 23 | 9GT 121 113 | 9GT121113 - thermostat | | 1 | |
| 24 | PAF 008 955 A | PAF008955A - Joint torique | 59.00X2.50 | 1 | |
| 25 | 0PB 121 688 A | 0PB121688A - bague-joint
thermostat
bague-joint
thermostat | | 1 | |
| 26 | 0PB 121 563 | 0PB121563 - Tuyau d'eau | alimentation | 1 | |
| (26) | | joint
voir table illust.,pos.: |
104-100,6 | 1 | |
| 27 | PAF 008 923 | PAF008923 - vis tete bombee aplatie | M6X14 | 5 | |
| 28 | PAF 008 267 | PAF008267 - Joint torique | 22.00X3.00 | 6 | |
| 29 | 0PB 121 398 C | 0PB121398C - tuyau a refrigerant | retour | 1 | |
| (29) | | Joint torique
voir table illust.,pos.: |
104-100,5 | 1 | |
| 30 | PAF 009 457 | PAF009457 - Joint torique | 31.00X3.00 | 2 | |
| 31 | 9GT 121 070 | 9GT121070 - tuyau a refrigerant
Inclus
Joints | | 1 | |
| 32 | 0PB 121 139 | 0PB121139 - joint
tuyau a refrigerant | | 1 | |
| 33 | 0PB 121 149 | 0PB121149 - joint
tuyau a refrigerant | | 1 | |
| 34 | 0PB 121 507 A | 0PB121507A - tuyau a refrigerant
Ne plus utiliser pièce ici | alimentation | 1 | |
| 34 | 9GT 121 507 F | tuyau a refrigerant | alimentation | 1 | |
| 35 | 9A7 008 125 00 | 9A700812500 - Vis ronde a six pans male | M6X16 | 1 | |
| 36 | PAF 008 282 | PAF008282 - Joint torique | 23.00X3.00 | 2 | |
